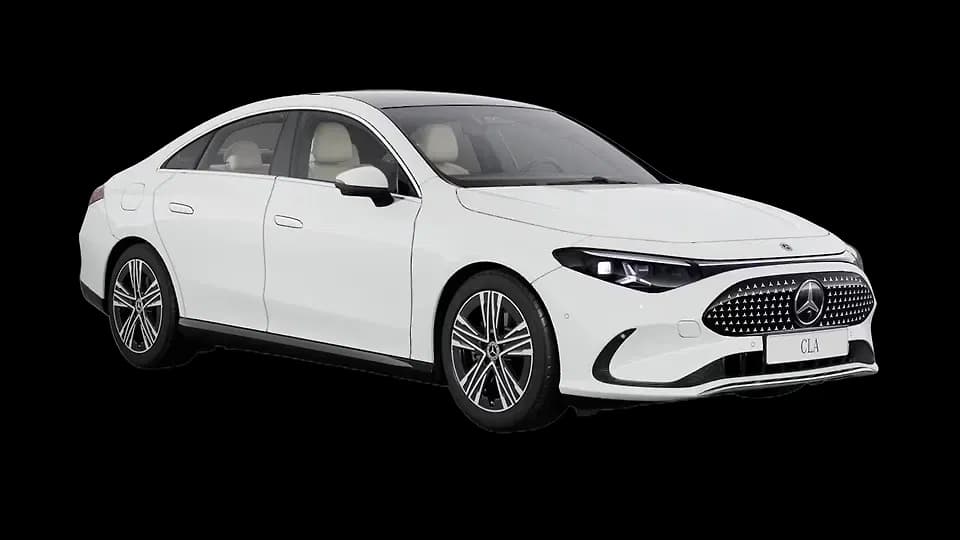

Mercedes-Benz CLA EV Specifications & Features

Mercedes-Benz CLA EV Specifications

• Battery Charging & Range

  Driving Range	792
  Charging Indicator On Light Bar	Yes
  DC Fast Charging	10-80 % : 22 mins, 320 kW charger
  Charger Included with Vehicle	Home Charger – AC Wall Box, Portable Charger
  Portable EV Charging Cable	Yes
  Regenerative Braking	Yes
  AC Fast Charging	0 - 100 % : 9 hrs, 11 kW charger
  Charging Options	11 kW AC Wall Box

• Transmission & Drivetrain

  Transmission	Automatic
  Drivetrain	RWD
  Differential Lock	No
  Chassis Type	Unibody/Monocoque Frame
  Four-Wheel-Drive	No
  Limited Slip Differential	No

• Suspension

  Front Suspension	MacPherson Strut
  Rear Suspension	Multi-Link
  Advanced Suspension Features	No

• Capacity & Dimensions

  Length *Width *Height	4723 mm * 1855 mm * 1468 mm
  Wheelbase	2790
  Seating Capacity	5 Seats and 2 Rows
  Doors	4
  Frequency Selective Damping (FSD)	No
  Minimum Turning Radius	5.6
  Gross Weight	2510
  Kerb Weight	2055

• Tyre & Wheels

  Wheels	Alloy Wheels
  Front Tyres	225 / 40 R19
  Rear Tyres	255 / 35 R19
  Spare Wheel & Tyre	Space Saver
  Tyres	Road Radial - Tubeless Tyres

• Warranty

  Battery Warranty

  8 Years / 160000 Km

• Battery Performance

  Fuel Type	Electric
  Max Power (bhp@rpm)	268 bhp
  Max Torque (Nm@rpm)	335 Nm
  Battery	Lithium Ion, 85.5 kWh, Placed Under Floor Pan
  Electric Motor	Single Permanent Magnet Synchronous Motor (Mounted at Rear Axle)
  Acceleration	0-100 km/h in 6.7 seconds (claimed)
  Top Speed	210

Mercedes-Benz CLA EV Features

• Storage

  Cup Holders	4 Cupholders in Front & Second Row
  Driver Armrest Storage	Yes
  Sunglass Holder	Yes
  Third Row Cup Holders	No
  Bottle Holder in Doors	Yes
  Door Pockets	Front & Rear
  Bootspace	405 L
  Cabin Boot Access	No
  Boot Open Warning	Yes
  Front Seatback Pockets	Yes
  Boot Opener	Electric
  Frunk Storage	101
  Heated/Cooled Cup Holders	No

• ADAS & Active Safety

  ADAS	Level 2
  Forward Collision Warning	Warning + Auto Braking, Vehicle Detection (4-Wheeler & 2-Wheeler) & Pedestrian Detection
  Lane Functions	Lane Departure Prevention, Lane Keep Assist
  Rear Collision Assist	Blind Spot Monitor, Lane Change Assist and Rear Cross-traffic Assist with Warning & Collision Avoidance
  Tyre Pressure Monitoring System	Yes
  Acoustic Vehicle Alerting System (AVAS)	Yes
  Anti Theft Alarm	Yes
  Video Recording	Yes
  High-beam Assist	Adaptive
  Emergency Brake Light Flashing	Yes
  Automatic Emergency Braking	Yes
  Speed Assist System	Yes
  Driver Drowsiness Detection	Yes
  Blind Spot Detection	Yes
  Safe Exit Warning (SEW)	Yes
  Traffic Sign Recognition	Yes
  Hands-off Detection	Yes

• Passive Safety (Airbags, NCAP Ratings, etc.)

  Airbags	7 Airbags (Driver, Front Passenger, 2 Curtain, Driver Side, Front Passenger Side, Front Centre)
  NCAP Rating	5 Star (Euro NCAP)
  Child Safety Rating	5 Star (Euro NCAP)
  Seatbelts	Yes
  Second Row Middle Seat Safety	Rear Middle Head Rest & Rear Middle Three Point Seatbelt
  Child Seat Anchor Points	Yes
  Child Safety Lock	Yes
  Puncture Repair Kit	Yes
  Breakdown Assistance Call Button	Yes
  Passenger Airbag Deactivation Switch	Yes
  Tyre Inflator	Yes

• Brakes

  Brakes	Disc (Front & Rear)
  Anti-Lock Braking System (ABS)	Yes
  Electronic Brake-force Distribution (EBD)	Yes
  Electronic Stability Program (ESP)	Yes
  Traction Control System (TC/TCS)	Yes
  Hill Hold Control	Yes
  Brake Assist (BA)	Yes

• AC & Climate Control

  Air Conditioner	Automatic Climate Control: Dual Zone (Front AC: Two Zones with Fan speed control, Second row AC: Blower with Vents Behind Front Armrest)
  Heater	Yes
  Air Purifier	Yes

• Doors, Mirrors & Wipers

  Central Locking	Keyless
  Exterior Door	Body Coloured Door Handles, Flush Fit Handles Type
  ORVM (Outside Rear View Mirrors)	Body-Coloured finish, Turn Indicators on ORVMs
  Adjustable ORVMs	Electrically Adjustable & Retractable
  Anti-glare ORVMs	Yes
  Inside Rear View Mirror (iRVM)	Auto-Dimming
  Vanity Mirrors on Sun Visors	Driver & Co-Driver (with light)
  Rain-sensing Wipers	Yes
  Rear Defogger	Yes
  Heated ORVM	Yes
  Interior Door Handles Finish	Chrome
  Boot Opener	Electric

• Sunroof & Windows

  Sunroof	Fixed Glass Panoramic Sunroof
  Power Windows	Front & Rear Power Windows, All One-touch up/down

• Driver Assistance (Park Assist, Cruise Control, etc.)

  Cruise Control	Yes
  Parking Sensors	Rear
  Keyless Start/ Button Start	Yes
  Parking Assist	360 Degree Camera

• Seating & Ergonomics

  Driver Seat Adjustment	12 way electrically adjustable with 3 memory presets (seat: forward / back, backrest tilt: forward / back, headrest: up / down, seat height: up / down, lumbar: up / down, lumbar: forward / back) + 2 way manually adjustable (extended thigh support: forward
  Front Passenger Seat Adjustment	12 way electrically adjustable with 3 memory presets (seat: forward / back, backrest tilt: forward / back, headrest: up / down, seat height: up / down, lumbar: up / down, lumbar: forward / back) + 2 way manually adjustable (extended thigh support: forward
  Second Row Seat Adjustment	4 way electrically adjustable (backrest tilt: forward / back, headrest: up / down)
  Seat Upholstery	Leather
  Headrests	Front & Rear
  Folding Rear Seat	Flat
  Rear Passenger Seat Type	Bench
  Driver Armrest	Yes
  Cabin Boot Access	No
  Ventilated Seats	Front Row (Heated)
  Massage Seats	Yes
  Split Rear Seat	40:20:40
  Rear Armrest	Cup Holder
  Height Adjustable Seat Belt	Yes
  Dead Pedal for Foot Rest	Yes

• Infotainment & Entertainment

  Infotainment Screen	14" HD Touch-screen Display
  Audio System	6+ Speakers
  AM/FM Radio	Yes
  Integrated (in-dash) Music System	Yes
  Bluetooth Compatibility	Phone Calls & Audio Streaming
  Smart Connectivity	Android Auto (Wireless) & Apple CarPlay (Wireless)
  Input Methods	Bluetooth Compatibility (Phone Calls & Audio Streaming), Type A & Type C Wired Connectivity
  GPS Navigation System	Yes
  Charging Ports	4 x USB Type-C, USB Type-A, 12V Power Outlet
  Antenna	Shark Fin Antenna
  Voice Assistant	Brand Assistant
  Ambient Sounds	No
  Wireless Charger	Yes (Front)
  Voice Command	Yes
  WiFi Hotspot	Yes
  Whatsapp and Text Readout	Yes

• Instrument Cluster

  Instrument Cluster Screen	10.25" Digital Instrument Cluster with Adjustable Cluster Brightness
  Speedometer	Digital
  Trip Meter	2 Trips Electronic
  Clock	Digital
  Gear Indicator	No
  Fuel Consumption	Distance to Empty
  Average Speed	Yes
  Low Battery Warning	Yes
  Heads Up Display (HUD)	No
  Navigation On Instrument Cluster	Yes
  Outside Temperature Gauge	Yes

• Steering

  Steering	Power-assisted (Electric) steering with mode adjust & 3 spokes
  Steering Adjustment	Tilt & Telescopic
  Steering-Mounted Controls	Yes

• Lighting & Visibilty

  Headlights	LED
  Daytime Running Lights (DRL)	LED
  Cornering Headlights	Yes
  Follow Me Home Headlamps	Yes
  Automatic Headlamps	Yes
  Headlight Height Adjuster	Yes
  Reflectors	Yes
  Taillights	LED
  Interior Lamps	Button Controlled Front and Rear LED Cabin lamps, Reading Lamp, Boot Lamp
  Puddle Lamps	Yes
  Illuminated Logo	Yes
  Ambient Interior Lighting	Multi-colour (64)
  Connected LED	Taillight
  Stop Lamp	LED
  Welcome and Goodbye Animation	Yes

• Mobile App & Remote Controls

  Alexa Compatibility	Yes
  Remote AC: On / Off via App	Yes
  Remote Car Lock/Unlock via App	Yes
  Remote Sunroof: Open / Close via App	No
  Connected Car App	Yes
  Emergency Call Button	Yes
  Find My Car	Yes
  Live Location Sharing	Yes
  Geo-fence	Yes
  Check Vehicle Status via App	Yes
  Over The Air (OTA) Updates	Yes
  Service Reminder Via App	Yes
  Live Traffic Updates On App	Yes
  Vehicle Tracking Via App	Yes
  Anti Theft Immobilisation	Yes
  Driving Analytics	Yes
  Home-to-Car Connectivity	Yes
  Smart Drive Information	Yes

• Design & Styling

  Wrappings	Leather Wrapped Steering Wheel
  Body-coloured Bumpers	Yes
  Spoiler	No
  Body Kit	Cladding - Body Coloured
  Rub-strips	No
  Grille Design	Illuminated star Grille
  Interior	Dual Tone (White / Red, Black / Red)

• Warning & Alerts

  Overspeed Warning	1 beep over 80kmph, Continuous beeps over 120kmph
  Door Ajar Warning	Yes
  Boot Open Warning	Yes
  Headlight and Ignition on Reminder	Yes
  Perimetric alarm system	Yes
  Tow Away Alert	Yes
