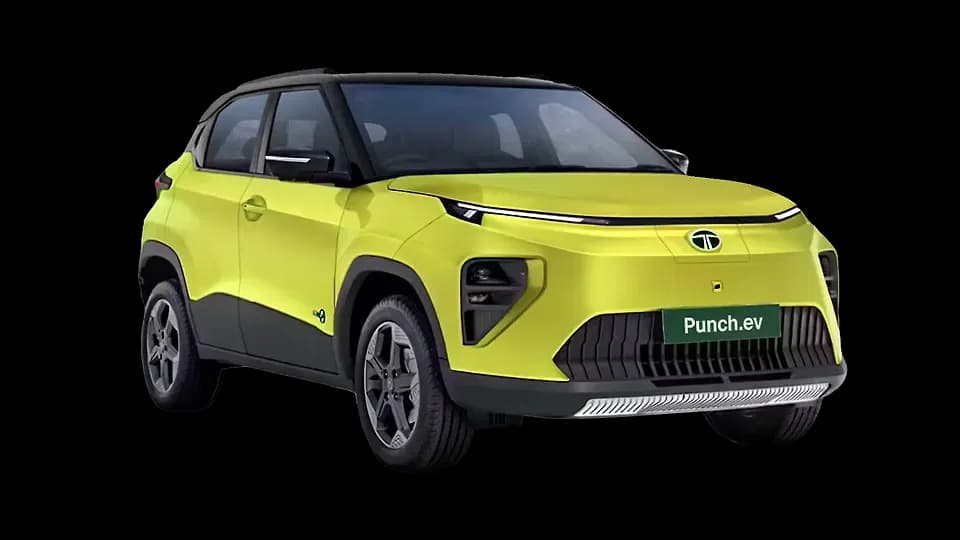

Tata Punch EV Specifications & Features

Tata Punch EV Specifications

• Battery Charging & Range

  Officially Certified Range (km)	375 km MIDC Certified Range
  Charging Options	DC Fast Charger
  DC Fast Charging	10-80 % : 30 mins, 65 kW charger & 10-80 % : 26 mins
  Ingress Protection(IP) for Motor & Battery Pack	IP67
  Charger Included with Vehicle	Home Charger – 3.3 kW AC Wall Box, Portable Charger
  Charger Connection Type	CCS2
  Portable EV Charging Cable	Yes
  Pure Electric Driving Mode	Yes
  AC Regular Charging	10 - 100 % : 11 hrs 54 mins
  AC Fast Charging	10 - 100 % : 4 hrs 30 mins, 7.2 kW charger
  Driving Range	355

• Transmission & Drivetrain

  Differential Lock	No
  Four-Wheel-Drive	No
  Transmission	Automatic
  Terrain Modes	No
  Drivetrain	FWD
  Drive Modes	2 - City and Sport

• Suspension

  Front Suspension	Independent, Lower Wishbone, McPherson Strut with Coil Spring
  Rear Suspension	Semi-independent twist beam with coil spring and shock absorber

• Capacity & Dimensions

  Ground Clearance	195 mm (unladen)
  Minimum Turning Radius	4.9
  Length *Width *Height	3880 mm * 1742 mm * 1622 mm
  Wheelbase	2445
  Seating Capacity	5 Seats and 2 Rows
  Doors	5
  Frequency Selective Damping (FSD)	No

• Tyre & Wheels

  Spare Wheel & Tyre	No
  Wheels	Steel Rims
  Tyres	Road Radial - Tubeless Tyres
  Front Tyres	185 / 70 R15
  Rear Tyres	185 / 70 R15

• Warranty

  Motor Warranty (In Kilometres)	160000
  Battery Warranty	8 Years / 160000 Km
  Vehicle Warranty	3 Years / 125000 Kms
  Motor Warranty (In Years)	8

• Battery Performance

  Battery	Lithium Ion, 30 kWh, Placed Under Floor Pan
  Max Torque (Nm@rpm)	154 Nm
  Electric Motor	Single Permanent Magnet Synchronous Motor (Mounted at Front Axle)
  Fuel Type	Electric
  Idle Start/Stop	No
  Max Power (bhp@rpm)	87 bhp
  Acceleration	0-100 km/h in 13.5 seconds (claimed)

• Off Road essentials

  Washable Floor with Drain Plugs	No
  Welded Tow Hooks	No
  Water Wading Depth (mm)	450

Tata Punch EV Features

• Storage

  Boot Opener	Electric Tailgate Release
  Utility Recess On Dashboard	No
  Umbrella Storage in Door	Yes
  Bootspace	366 L
  Lockable Glovebox	No
  Cup Holders	2 Cupholders in Front Only
  Door Pockets	Front & Rear
  Cabin Boot Access	Yes
  Boot Open Warning	Yes
  Front Seatback Pockets	No
  Rear Parcel Tray	No
  Sunglass Holder	No
  Driver Armrest Storage	No
  Cooled Glovebox	No
  Bottle Holder in Doors	Yes

• ADAS & Active Safety

  Anti Theft Alarm	Yes
  High-beam Assist	Yes
  Tyre Pressure Monitoring System	Indirect
  Forward Collision Warning	No
  Lane Functions	No
  Rear Collision Assist	No
  Video Recording	No
  ADAS	No

• Passive Safety (Airbags, NCAP Ratings, etc.)

  Puncture Repair Kit	Yes
  Breakdown Assistance Call Button	No
  Second Row Middle Seat Safety	Rear Middle Three Point Seatbelt
  Collapsible Steering Column	Yes
  Low Rolling Resistance Tyres	Yes
  Passenger Airbag Deactivation Switch	Yes
  Seatbelts	Pretensioning with Load Limiter (All)
  Airbags	6 Airbags (Driver, Front Passenger, 2 Curtain, Driver Side, Front Passenger Side)
  Child Seat Anchor Points	Yes
  Dashcam	No

• Brakes

  Hill Hold Control	No
  Multi-collision Brake	No
  Hill Descent Control	No
  Electronic Brake-force Distribution (EBD)	Yes
  Electronic Stability Program (ESP)	Yes
  Traction Control System (TC/TCS)	Yes
  Brake Disc Wiping	Yes
  Brakes	Disc (Front), Drum (Rear)
  Anti-Lock Braking System (ABS)	Yes

• AC & Climate Control

  Air Purifier	No
  Air Conditioner	Automatic Climate Control (Front AC: Single Zone with Fan speed control)
  Heater	Yes

• Doors, Mirrors & Wipers

  ORVM (Outside Rear View Mirrors)	Black finish, Turn Indicators on ORVMs
  Boot Opener	Electric Tailgate Release
  Inside Rear View Mirror (iRVM)	Manual Dimming
  Anti-glare ORVMs	No
  Rain-sensing Wipers	No
  Rear Wiper	No
  Rear Defogger	No
  Interior Door Handles Finish	Black
  Vanity Mirrors on Sun Visors	No
  Adjustable ORVMs	Internally Adjustable
  Central Locking	Yes
  Speed Sensing Door Lock	Yes
  Exterior Door	Body Coloured Door Handles, Pull Handles Type

• Sunroof & Windows

  Sunroof	No
  Window Sunshade	No
  Power Windows	Front Only Power Windows

• Driver Assistance (Park Assist, Cruise Control, etc.)

  Cruise Control	No
  Keyless Start/ Button Start	No
  Parking Assist	No
  Parking Sensors	Rear

• Seating & Ergonomics

  Front Passenger Seat Adjustment	6 way manually adjustable (seat: forward / back, backrest tilt: forward / back, headrest: up / down)
  Driver Armrest	No
  Height Adjustable Seat Belt	No
  Second Row Seat Adjustment	2 way manually adjustable (headrest: up / down)
  Seat Upholstery	Fabric
  Headrests	Front & Rear
  Driver Seat Adjustment	8 way manually adjustable (seat: forward / back, backrest tilt: forward / back, headrest: up / down, seat height: up / down)
  Folding Rear Seat	Flat
  Rear Passenger Seat Type	Bench
  Cabin Boot Access	Yes
  Ventilated Seats	No
  Rear Armrest	No

• Infotainment & Entertainment

  AM/FM Radio	No
  Integrated (in-dash) Music System	No
  Infotainment Screen	No
  Audio System	No
  Charging Ports	12V Power Outlet
  Bluetooth Compatibility	No
  Smart Connectivity	No
  Voice Command	No
  GPS Navigation System	No
  Input Methods	No
  Antenna	No
  Voice Assistant	No
  Gesture Control	No
  Ambient Sounds	No
  Wireless Charger	No
  Speed Dependent Volume	No

• Instrument Cluster

  Fuel Consumption	Distance to Empty
  Instrument Cluster Screen	4" Digital Instrument Cluster with Adjustable Cluster Brightness
  Heads Up Display (HUD)	No
  Tyre Position Display	No
  Navigation On Instrument Cluster	No
  Speedometer	Digital
  Trip Meter	2 Trips Electronic
  Clock	Digital
  Average Speed	Yes
  Low Battery Warning	Yes

• Steering

  Steering	Power-assisted (Electric) steering with 2 spokes
  Steering-Mounted Controls	No
  Steering Adjustment	Tilt

• Lighting & Visibilty

  Daytime Running Lights (DRL)	LED
  Headlight Height Adjuster	Yes
  Taillights	LED
  Puddle Lamps	No
  Ambient Interior Lighting	No
  Stop Lamp	Yes
  Cornering Headlights	No
  Fog Lights	No
  Illuminated Logo	Steering Wheel
  Reflectors	Rear Bumper
  Follow Me Home Headlamps	No
  Automatic Headlamps	No
  Headlights	Halogen
  Interior Lamps	Front Halogen Cabin lamps,

• Mobile App & Remote Controls

  Alexa Compatibility	No
  Remote Car Lock/Unlock via App	No
  Remote Sunroof: Open / Close via App	No
  Car Light Flashing & Honking via App	No
  Connected Car App	No

• Design & Styling

  Spoiler	Yes
  Skid Plate	Front & Rear
  Rub-strips	No
  Body-coloured Bumpers	Yes
  Wrappings	No
  Scuff Plates	No
  Diffuser	No
  Body Kit	No
  Roof Rails	No
  Grille Design	EV Specific Grille

• Warning & Alerts

  Overspeed Warning	1 beep over 80kmph, Continuous beeps over 120kmph
  Door Ajar Warning	Yes
  Seat Belt Warning	1
  Boot Open Warning	Yes
  Headlight and Ignition on Reminder	Yes
  Dual Tone Horn	No
  Auto Crash Alert	No
  Perimetric alarm system	Yes
