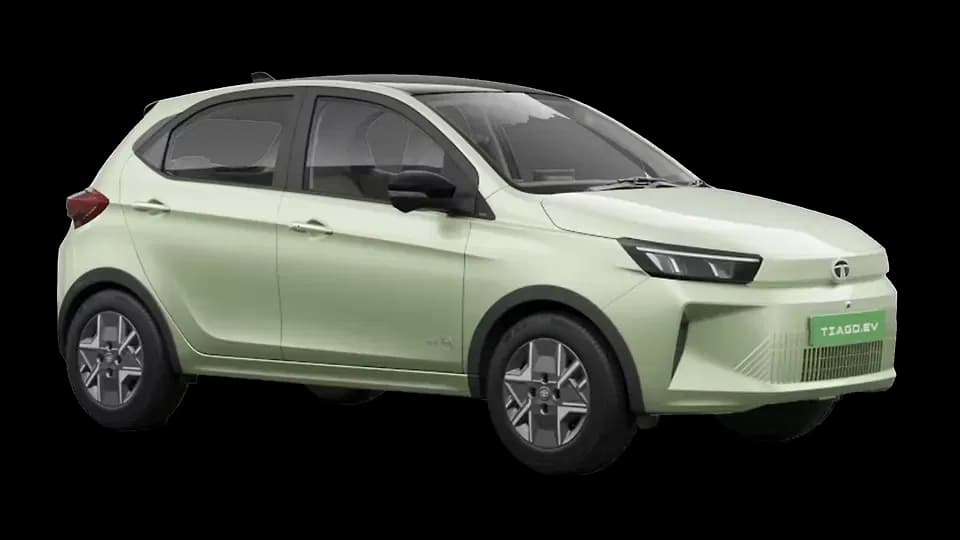

Tata Tiago EV Specifications, Performance & Features.

Specifications & Features.

Key Specifications

Fuel TypeElectric

Engine-

TransmissionAutomatic, Sport Mode

Power60 bhp

Battery Charging & Range

DC Fast Charging10-80 % : 35 mins, 30 kW charger & 20-80 % : 30 mins

AC Fast Charging10 - 100 % : 2 hrs 36 mins, 7.2 kW charger

Driving Range170 km

Officially Certified Range (km)226 km MIDC Certified Range

Charging OptionsDC Fast Charger

Charger Included with VehicleHome Charger – 3.3 kW AC Wall Box, Portable Charger

Charger Connection TypeCCS2

Portable EV Charging CableYes

Transmission & Drivetrain

TransmissionAutomatic, Sport Mode

DrivetrainFWD

Drive Modes2 - City & Sport

Chassis TypeUnibody/Monocoque Frame

Suspension

Front SuspensionIndependent Lower wishbone, McPherson (Dual Path) Strut Type

Rear SuspensionTwist Beam with Coil Spring Mounted on Hydraulic Shock Absorbers

Capacity & Dimensions

Length *Width *Height3825 mm * 1684 mm * 1562 mm

Wheelbase2400 mm

Seating Capacity5 Seats and 2 Rows

Doors5 Doors

Minimum Turning Radius5.1 metres

Ground Clearance165 mm (unladen)

Tyre & Wheels

WheelsSteel Rims

Front Tyres175 / 65 R14

Rear Tyres175 / 65 R14

Spare Wheel & TyreNo

TyresRoad Radial - Tubeless Tyres

Warranty

Vehicle Warranty3 Years / 125,000 kms

Vehicle Warranty3 Years / 125000 Kms

Battery WarrantyLifetime warranty (First registered owner – Private Registration) , Ownership change – 8 years or 160000 kms (whichever is earlier from the first delivery date)

Battery WarrantyLifetime warranty (First registered owner – Private Registration) , Ownership change – 8 years or 160000 km (whichever is earlier from the first delivery date)

Motor Warranty (In Years)8

Motor Warranty (In Kilometres)160000

Battery Performance

Fuel TypeElectric

BatteryLithium Ion, 19.2 kWh, Placed Under Floor Pan

Max Power (bhp@rpm)60 bhp

Max Torque (Nm@rpm)110 Nm

Idle Start/StopNo

Electric MotorSingle Permanent Magnet Synchronous Motor (Mounted at Front Axle)

Acceleration0-60 km/h in 6.2 seconds (claimed)

ADAS & Active Safety

Tyre Pressure Monitoring SystemIndirect

Speed Assist SystemYes

Rear Collision AssistNo

High-beam AssistYes

Anti Theft AlarmYes

Acoustic Vehicle Alerting System (AVAS)Yes

Video RecordingNo

Thermal Incident ProtectionYes

Passive Safety (Airbags, NCAP Ratings, etc.)

Airbags6 Airbags (Driver, Front Passenger, 2 Curtain, Driver Side, Front Passenger Side)

NCAP RatingNot Tested

SeatbeltsPretensioning with Load Limiter (All)

Child Seat Anchor PointsYes

Engine ImmobiliserYes

Puncture Repair KitYes

Second Row Middle Seat SafetyRear Middle Three Point Seatbelt

Child Safety LockYes

Brakes

BrakesDisc (Front), Drum (Rear)

Anti-Lock Braking System (ABS)Yes

Electronic Stability Program (ESP)No

Hill Hold ControlNo

Electronic Brake-force Distribution (EBD)Yes

Traction Control System (TC/TCS)No

AC & Climate Control

Air ConditionerAutomatic Climate Control (Front AC: Single Zone with Fan speed control)

HeaterYes

Air PurifierNo

Doors, Mirrors & Wipers

Central LockingRemote

Interior Door Handles FinishChrome

Adjustable ORVMsInternally Adjustable

Inside Rear View Mirror (iRVM)Manual Dimming

Rear DefoggerNo

Extendable Sun VisorNo

Rear WiperNo

Speed Sensing Door LockYes

Sunroof & Windows

Power WindowsFront Only Power Windows

Driver Assistance (Park Assist, Cruise Control, etc.)

Keyless Start/ Button StartNo

Parking AssistNo

Parking SensorsRear

Cruise ControlNo

Storage

Bottle Holder in DoorsYes

Door PocketsFront & Rear

Rear Parcel TrayNo

Cabin Boot AccessYes

Cup Holders2 Cupholders in Front Only

Driver Armrest StorageNo

Bootspace 240 L

Boot OpenerManual

Seating & Ergonomics

Driver Seat Adjustment6 way manually adjustable (seat: forward / back, backrest tilt: forward / back, headrest: up / down)

Front Passenger Seat Adjustment6 way manually adjustable (seat: forward / back, backrest tilt: forward / back, headrest: up / down)

Seat UpholsteryFabric

HeadrestsFront & Rear

Split Rear SeatNo

Rear Passenger Seat TypeBench

Cabin Boot AccessYes

Driver ArmrestNo

Infotainment & Entertainment

Infotainment ScreenNo

Audio SystemNo

AM/FM RadioNo

Bluetooth CompatibilityNo

Smart ConnectivityNo

Input Methods No

AntennaRoof-Mounted Antenna

Charging Ports12V Power Outlet

Instrument Cluster

Instrument Cluster ScreenDigital Instrument Cluster with Adjustable Cluster Brightness

SpeedometerDigital

TachometerDigital

ClockDigital

Gear IndicatorNo

Fuel ConsumptionDistance to Empty

Trip Meter2 Trips Electronic

Average SpeedYes

Steering

Steering AdjustmentTilt

Steering-Mounted ControlsNo

SteeringPower-assisted (Electric) steering with 2 spokes

Lighting & Visibilty

HeadlightsHalogen

Daytime Running Lights (DRL)No

Fog LightsNo

Ambient Interior LightingNo

Interior LampsSwitch Controlled Front LED Cabin lamps, Reading Lamp,

Automatic HeadlampsNo

Follow Me Home HeadlampsNo

Headlight Height AdjusterYes

Mobile App & Remote Controls

Anti Theft ImmobilisationNo

Design & Styling

InteriorDual Tone (Grey and Black)

Grille DesignEV Specific Grille

Roof RailsNo

SpoilerYes

WrappingsNo

Body-coloured BumpersYes

Body KitNo

Skid PlateNo

Warning & Alerts

Overspeed Warning1 beep over 80kmph, Continuous beeps over 120kmph

Door Ajar WarningYes

Headlight and Ignition on ReminderYes

Boot Open WarningYes

Perimetric alarm systemNo

Colors

Daytona Grey

*Prices are ex-showroom in New Delhi. Specifications may vary for different variants.
